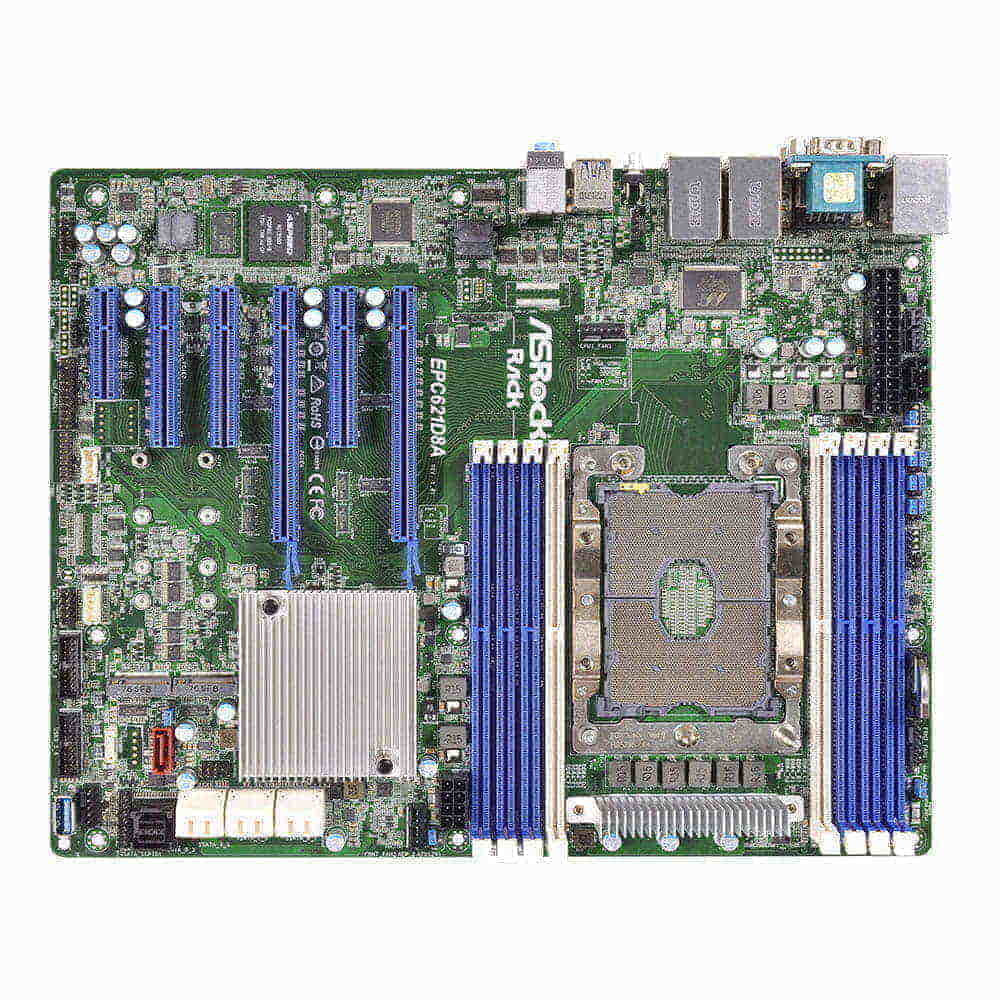

| MB Physical Status |
| Form Factor | - ATX |
| Dimensions | - 12''x9.6'' |
| Processor System |
| CPU | - Supports 2nd Gen. Intel® Xeon® Scalable Processors / Intel® Xeon® Scalable Processors |
| Socket | - Single Socket P, LGA3647 |
| Chipset | - Intel C621 |
| System Memory |
| Capacity | - 8 x 288-pin DDR4 DIMM slots |
| Type | - Six Channel memory technology
- Support DDR4 2933/2666/2400/2133 RDIMM/LR DIMM, Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only) |
| Voltage | - 1.2V |
| Expansion Slot |
| PCIe 3.0 x 16 | - 2 slots (slot4: share with slot3, X16/x8, Slot6: share with slot5, X16/x8) |
| PCIe 3.0 x 8 | - 3 slots (slot2: x8, slot3: share with slot3, X0/x8, Slot5: share with slot6, X0/x8) |
| PCIe 3.0 x 4 | - 1 slot |
| Storage |
| SATA Controller | - Intel C621 : 13 x SATA3 (including 1 SATA DOM ports and 2 M.2 ports) |
| Ethernet |
| Interface | - 1000 Mbps (1GbE) |
| LAN Controller | - 4 x RJ45 by Marvell 88E1543 for 4 ports GbE |
| Management |
| BMC Controller | - ASPEED AST2500 |
| IPMI Dedicated GLAN | - 1 x Realtek RTL8211E for dedicated management GLAN |
| Features | - Watch Dog
- NMI |
| Graphics |
| Controller | - ASPEED AST2500 |
| VRAM | - DDR4 256MB |
| Audio |
| Audio Codec | - Realtek ALC1150 |

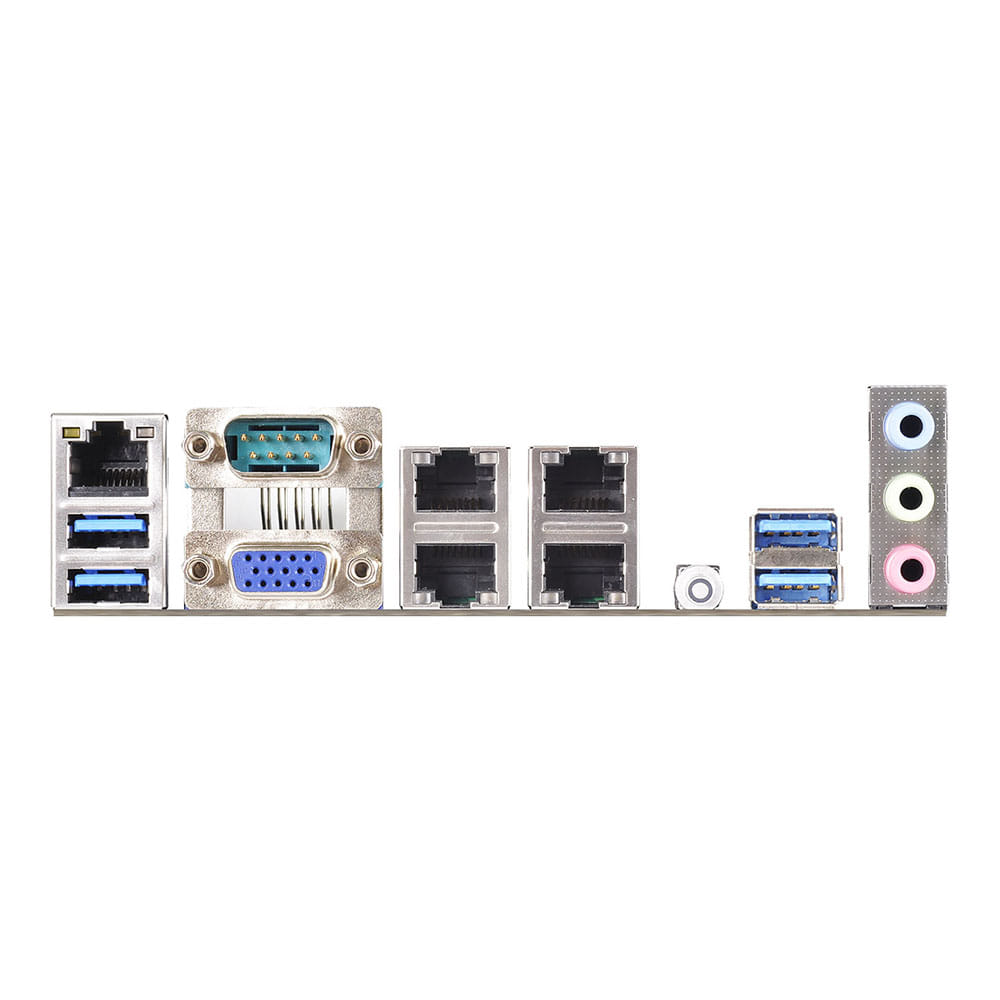

| Rear Panel I/O |
| VGA Port | - 1 x D-Sub |
| USB 3.1 Gen1 Port | - 4 |
| Lan Port | - 4+1 RJ45 Gigabit Ethernet LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| Serial Port | - 1 x COM port |
| Audio | - 3 hole |
| Internal Connector |
| SATA DOM | - 1 |
| M.2 | - 2 (up to 2280, SATA and PCIe x1) |
| Auxiliary Panel Header | - 1 (includes chassis intrusion, location button & LED, front LAN LED) |
| TPM Header | - 1 |
| IPMB Header | - 1 |
| Buzzer | - 1 |
| Fan Header | - 1 x CPU Fan, 4 x system Fan (3 front, 1 rear) |
| ATX Power | - 1 (24-pin) + 1 (8-pin) |
| USB 3.1 (Gen1) Header | - 2 (support 4 ports USB 3.0) |
| Type A USB 3.1 (Gen1) Port | - 1 |
| System BIOS |
| BIOS Type | - 256MB AMI UEFI Legal BIOS |
| BIOS Features | - Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8 Support
- ASRock Rack Instant Flash |
| Hardware Monitor |
| Temperature | - CPU Temperature Sensing
- System Temperature Sensing |
| Fan | - CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB |
| Support OS |
| OS | Microsoft® Windows®
- Windows® 10 (64 bit)
- Server 2012 R2 (64 bit)
- Server 2016 (64 bit)
Linux
- CentOS 6.8 (64 bit) / 7. 2 (64 bit)
- SUSE Enterprise Linux Server 11 SP4 (64 bit) /12 SP1 (64 bit)
- FreeBSD 11 (64 bit)
- Fedora Core 24 (64 bit)
- Ubuntu 16.04/15.10 (64 bit)
- RedHat Enterprise Linux Server 6.8 (64 bit) / 7.2 (64 bit)
Virtual:
- VMWare® ESXi 6.0 |
| Environment |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
